DC 10000

DC 10000 dilution cascade with electrical operating pump

    No compressed air connection; only electrical power supply 115 - 230 V, 50 - 60 Hz
    Dilution factors 1:10, 1:100, 1:1,000, 1:10,000
    The user can perform a simple functional test on-site
    The dilution systems can be combined with all common particle counters
    The dilution systems from Palas® are characterized unambiguously. This is documented with a calibration certificate for each individual device.

Description

The DC 10000 consists of four cascaded special dilution systems with the dilution factor 1:10. The DC 10000 dilution cascade has one aerosol inlet and four aerosol outlets. Depending on which aerosol outlet is connected to the measuring device, the aerosol with the dilution factors 1:10, 1:100, 1:1,000 or 1:10,000 are diluted and measured.

The DC 10000 can be operated with all common optical particle counters (OPC) according to ISO 12501-4 or optical aerosol spectrometers (OAS) according to ISO 12501-1. The DC 10000 can be used up to a particle size of approx. 5 µm.

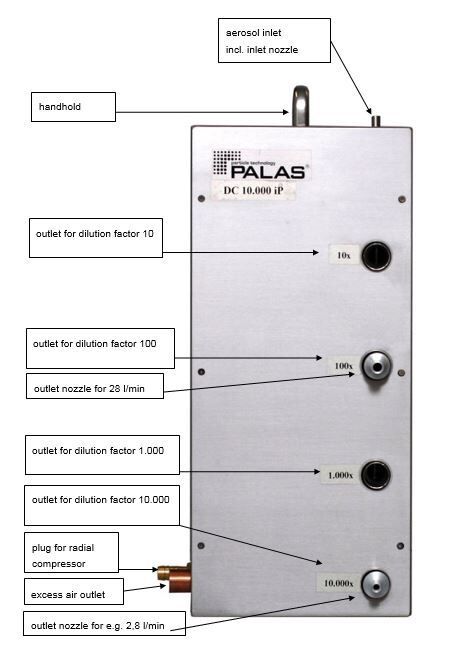

Fig. 1: Overview of the DC 10000, front view

Functional principle

Fig. 2: Functional principle

Particle-free air with the volume flow Vcirculates through an annular passage around the suction nozzle. Thus, according to Bernoulli, a volume flow VAn is generated in the suction nozzle.

The dilution factor VF is calculated according to the formula:

Fig. 3: Formula for the dilution factor VF.

The DC 10000 needs no compressed air connection. So only an electrical power supply is necessary for operation.

Table 1:  Technical characteristics of Palas® dilution systems

Datasheet

Power supply

115 – 230 V, 50 – 60 Hz

Dimensions

approx. 500 • 230 • 150 mm (H • W • D)

Weight

approx. 10 kg

Dilution factor

1 : 10
1 : 100
1 : 1,000
1 : 10,000

Isokinetic suction nozzles

Isokinetic suction nozzles

Maximum particle size

< 5 µm

Volume flow (clean air)

72 – 180 l/min

Volume flow (suction flow)

2 – 5 l/min

Benefits

    No compressed air connection; only electrical power supply 115 - 230 V, 50 - 60 Hz
    Dilution factors 1:10, 1:100, 1:1,000, 1:10,000
    The user can perform a simple functional test on-site
    The dilution systems can be combined with all common particle counters
    The dilution systems from Palas® are characterized unambiguously. This is documented with a calibration certificate for each individual device.

Applications

    Aerosol dilutions in filter media test systems, e.g. MFP 1000 HEPA and MFP Nano plus according to EN 1822 and ISO 29463
    Aerosol dilutions in filter test systems, e.g. according to EN 779, ASHRAE 52.2 and ISO 16890
    Aerosol dilution in clean rooms
    Aerosol dilution in the operating room to determine the level of protection according to SWKI VA 105-1 and DIN 1946-4
    Recovery tests according to ISO 14644-3
